2.5mm Rotary shear – CE Approved

CE certified

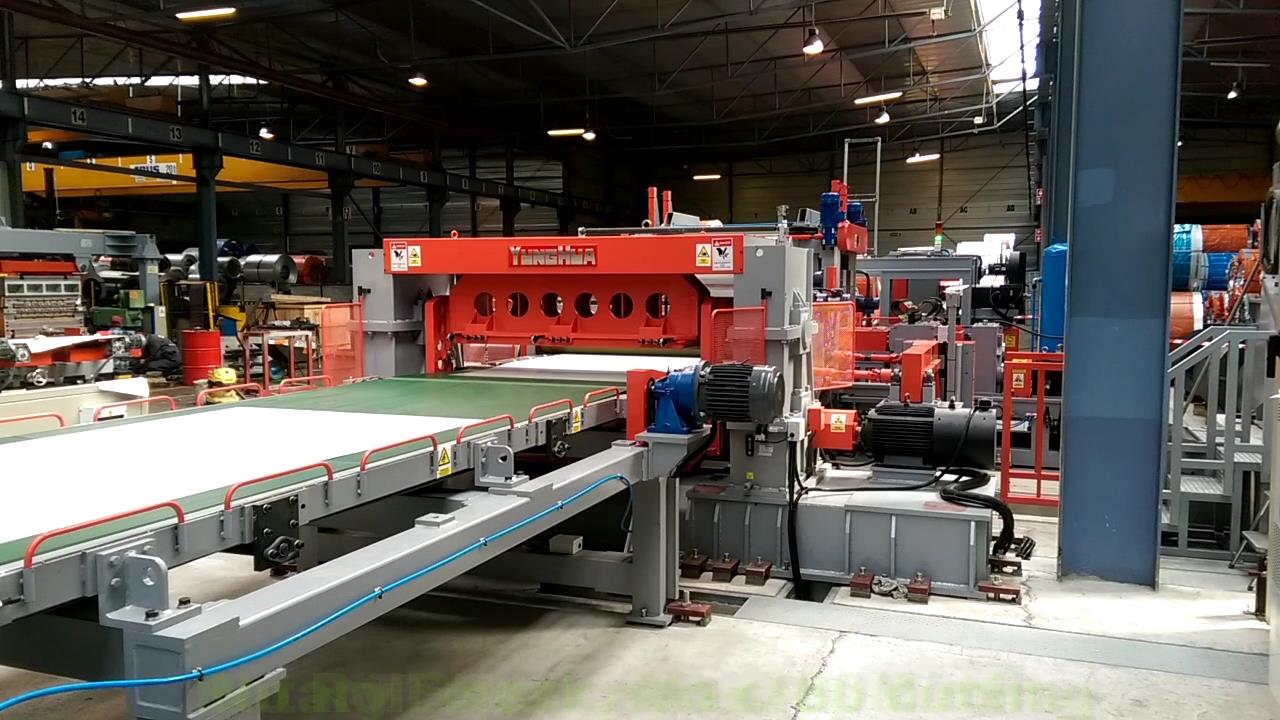

Cut-to-length Line
Rotary Shear

Speed: 80 M/min.
Thickness: 0.3 ~ 2.5mm
Width: 1,550mm
Length: 300mm ~ 5,000mm

Client's focus materials:

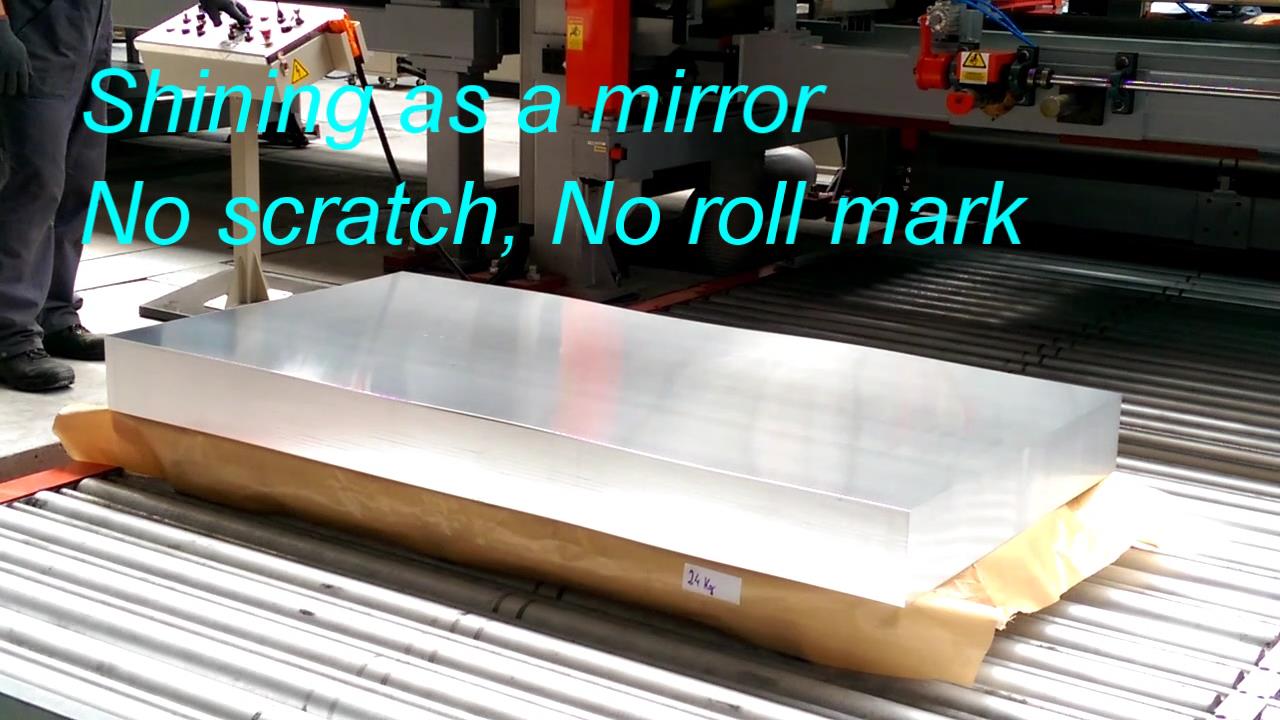

*Aluminum (Al)
*Electrical Galvanized steel (EG)
*Pre-painted Color Material (PCM)
*Cold Rolled steel (CR)


Cut-to-length Line


Rotary Shear

Speed: 80 M/min.

Thickness: 0.3 ~ 2.5 mmt


--- Video introduction ---

Special Features:

*Machine meets EC Directives:

- 2006/42/EC Machinery Directive

- 2014/30/EU (EMC)

- 2014/35/EU (LVD)


*Safety fence & Light curtains

*Double electric safety circuit

*Laser guide Coil height & edge

*Lamination for paper and film


*6-Hi 19-roll Corrective leveler



*Rotary Shear – Servo motor driven



*For more Features of our Cut-to-length Line with details, please refer to those two pages:

1. Special & Optional Auxiliary Equipment

2. Advanced Features in common.
